MATTOS-- EVO Dome RGB Pixels – Durable 12V WS2811 LED Pixel Lights with Patent-Pending Design, IP67 Waterproof

***This Item will ship separately from Mattos Design***Product is supported solely by Mattos designs.

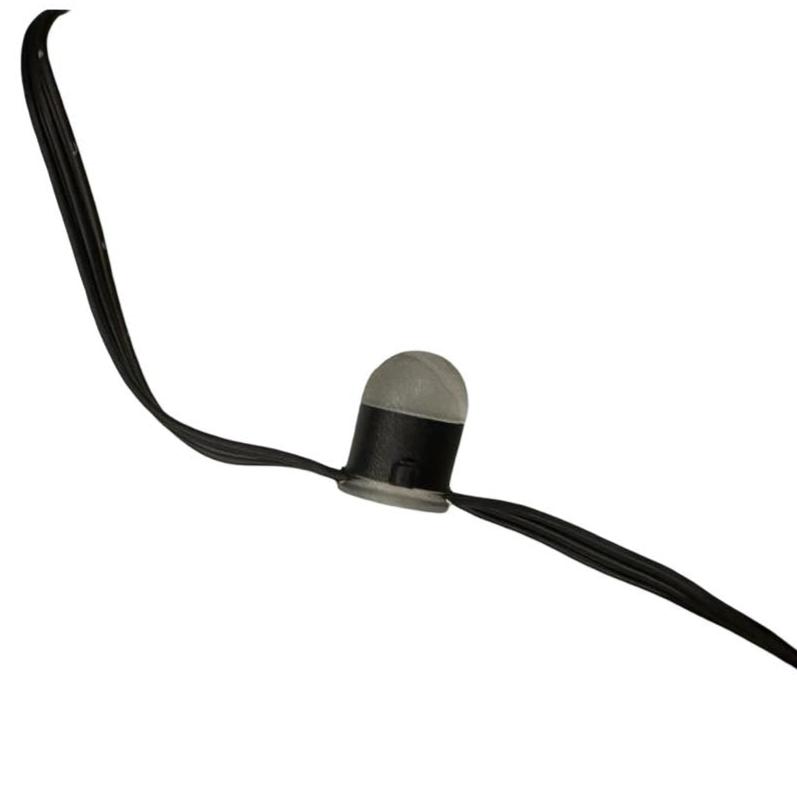

EVO Dome RGB Pixels

Upgrade your displays with the revolutionary EVO Dome RGB Pixels from Mattos Designs. This innovative take on the classic 12mm pixel features a patent-pending design that ensures superior durability and performance. With a native 12-volt WS2811 chip/LED combo, these pixels eliminate additional support components, reducing failure points and enhancing power efficiency.

Key Features:

• Efficient Power Consumption: At only 8mA each, EVO Pixels offer exceptional power efficiency, allowing for higher pixel counts with thinner wires before needing power injection.
• Advanced Design: Unlike traditional bullet pixels, EVO Pixels require higher voltage at each pixel and maintain consistent brightness levels, benefiting from power balancing for pixel counts of 250 and above.
• Durability: The internal LED assembly is epoxy-coated and encased in a PVC shell, providing exceptional water and environmental resistance.

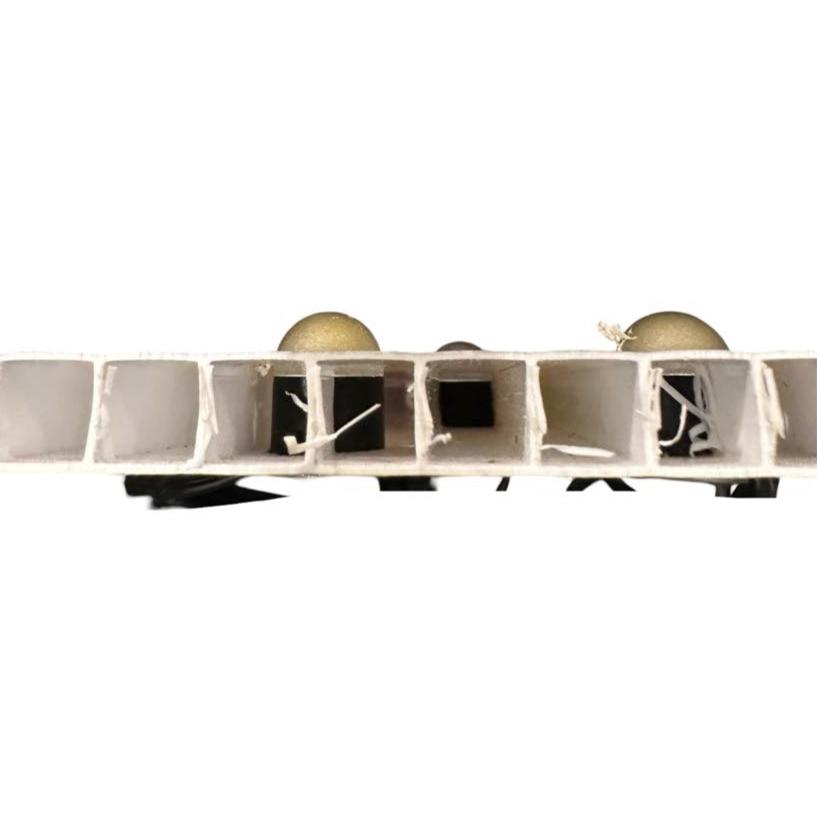

• Easy Installation: Designed to fit flush with 10mm coroplast props, the EVO Pixels feature nubs for effortless insertion and removal. The slightly tapered 12mm shell makes securing into pixel strips simple and comfortable.
• Lightweight: Weighing just 238 grams per 100 pixels at 4” spacing, EVO Pixels significantly reduce the weight of your props, making them easier to handle and mount.
• Bright Illumination: With a full 12mm of illuminated surface, side and rear illumination, EVO Pixels rival traditional bullet pixels in brightness while offering improved ease of insertion and storage.
• User-Friendly: Each pixel is marked with "+ Data -" for easy identification, customization, and repair. A 3-year warranty covers all unmodified and uncut pixel strings.

Specifications:

• Voltage: 12V DC, no on-board resistors or regulators required
• Protocol: WS2811
• Spacing Options: 4-inch spacing (available in 100 Count, TWO 50 Count, or FOUR 25 Count packages)
• Protection: IP67 rated with encapsulated PCB and wire, further enclosed in a PVC shell

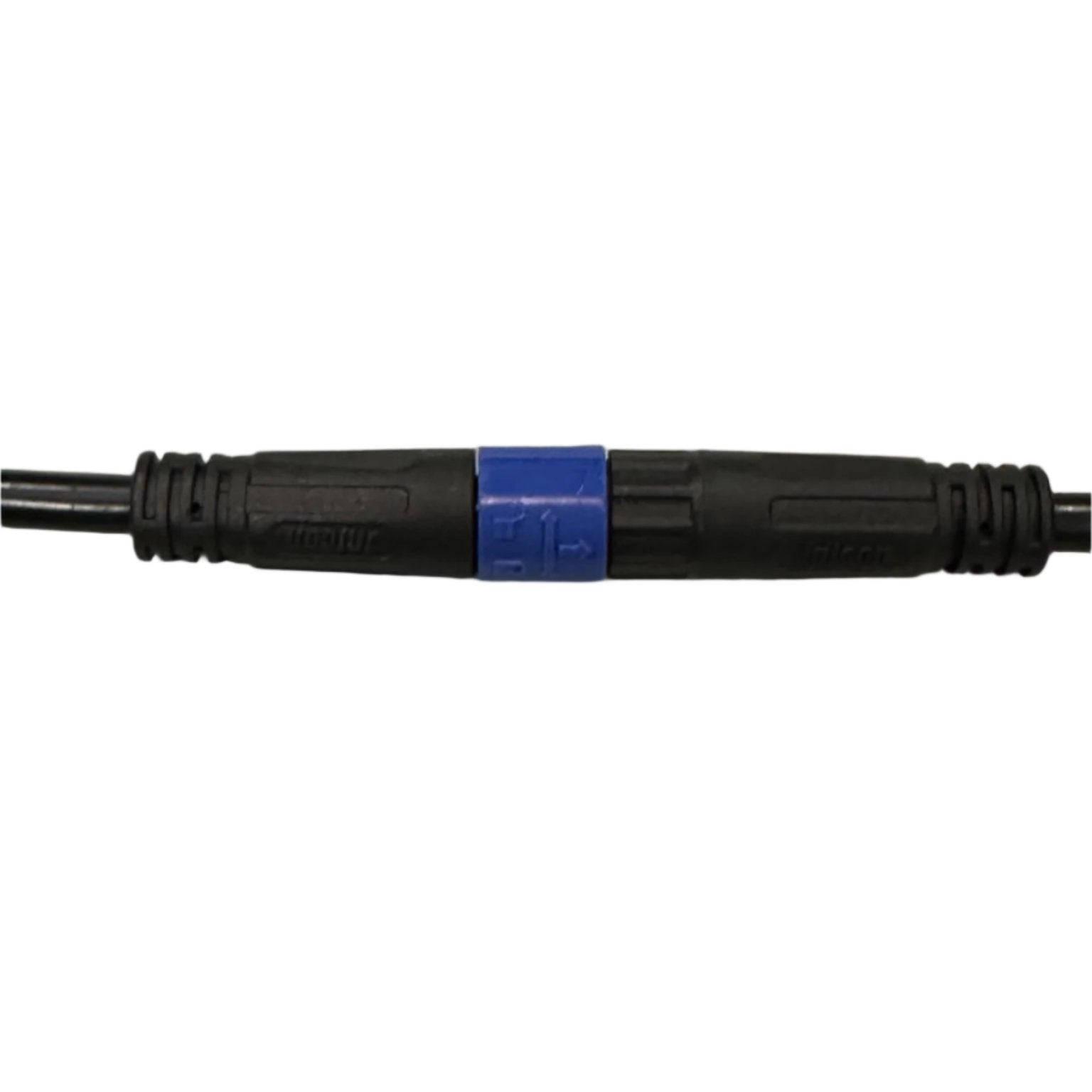

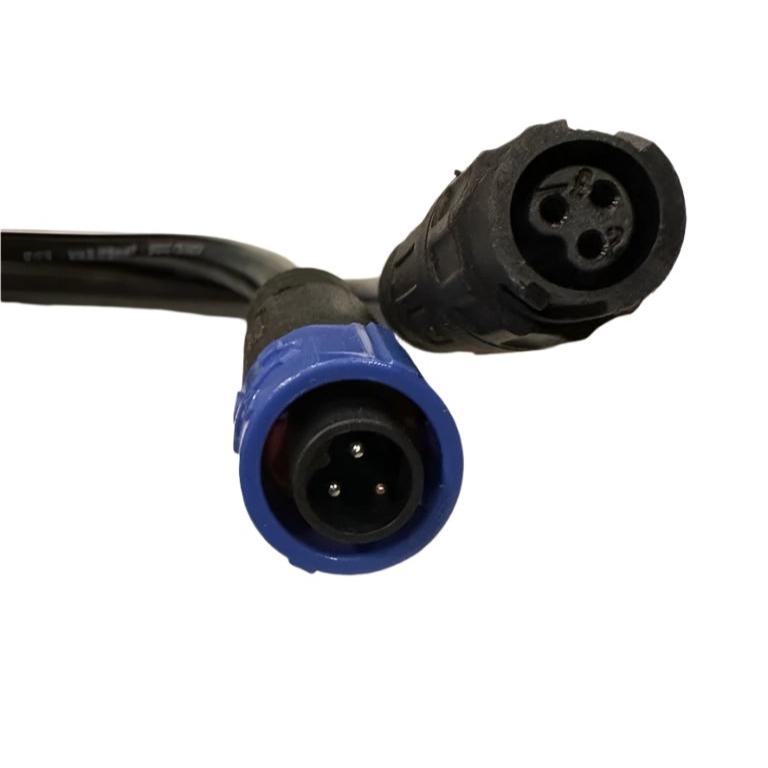

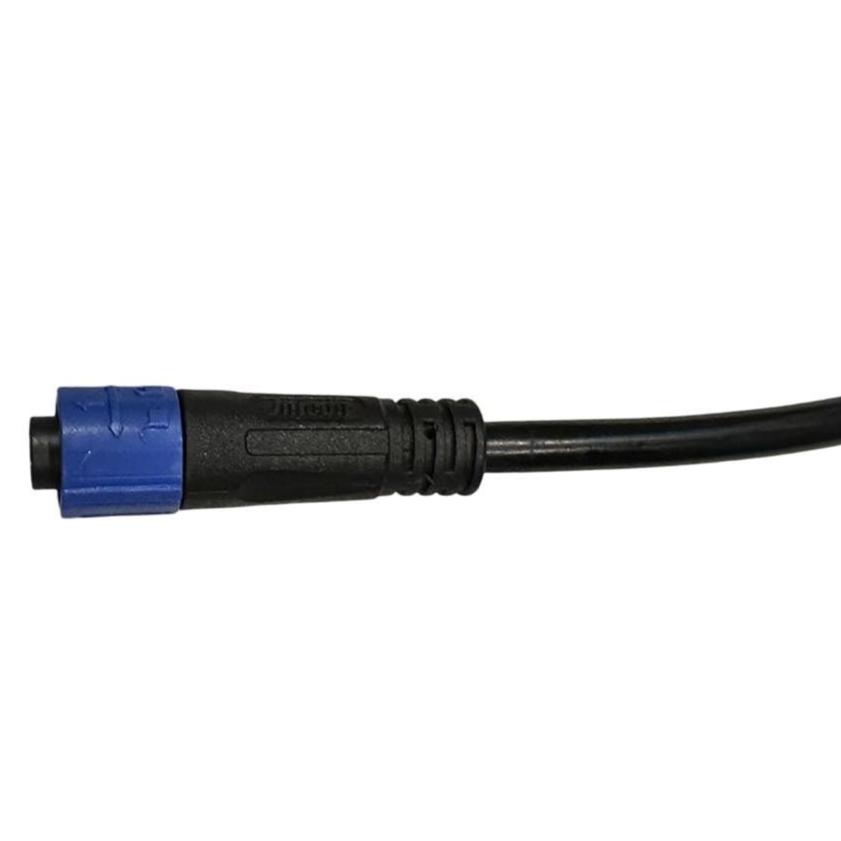

• Connectors: M-Connect Pigtails
• Certifications: CE, RoHS, and FCC Certified
• Wire: 10 strand black wire standard
• Warranty: 3-year warranty on all unmodified/unmodified pixel strings

Transform your display setup with the EVO Dome Pixels by Mattos Designs, providing unmatched durability, efficiency, and brightness for a show-stopping performance every time.
